In the world of precision sealing for critical applications, Copper Gaskets stand out as a fundamental component. Known for their exceptional thermal conductivity, malleability, and reliable sealing under high temperatures and pressures, these gaskets are indispensable in industries ranging from aerospace and automotive to power generation and chemical processing. The inherent properties of copper, including its corrosion resistance and ability to conform to irregular surfaces, make copper gaskets a preferred choice for creating leak-proof seals in some of the most demanding environments. At Kaxite, we engineer our gaskets to meet the highest standards of performance and durability, ensuring your systems operate with integrity and efficiency.
Kaxite copper gaskets are manufactured with precision to ensure optimal performance. Below are the key specifications that define our product range:
Our standard inventory includes a wide variety of types and sizes. Custom designs are also available upon request.
| Gasket Type | Standard Inner Diameter (ID) Range | Standard Outer Diameter (OD) Range | Thickness (Gauge) | Common Standards |
|---|---|---|---|---|

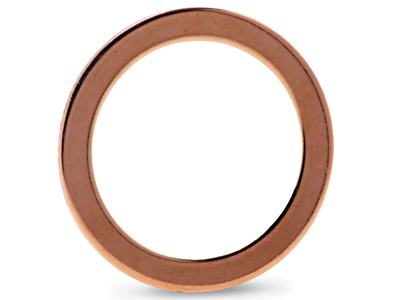

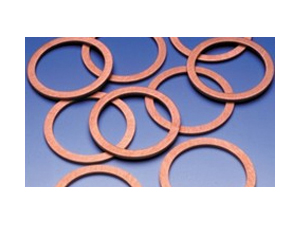

| Flat Ring / Washer Type | 3 mm to 500 mm | 10 mm to 600 mm | 0.5 mm to 3.0 mm (0.020" to 0.125") | ASME B16.21, DIN 7603 |
| Spiral Wound (with copper filler) | 15 mm to 1500 mm | 30 mm to 1600 mm | 3.0 mm, 4.5 mm (Standard) | ASME B16.20, API 6A |
| Jacketed (Copper over soft filler) | 25 mm to 1200 mm | 50 mm to 1250 mm | Varies | ASME B16.20 |
| RTJ (Ring Type Joint) | R-series: 52.4 mm to 292.1 mm | Defined by API 6A Profile | Profile Specific (e.g., R44, R45) | API 6A, ASME B16.20 |
| Solid Oval/Round Octagonal | API 6A Bore Sizes | Profile Specific | Cross-section: 5.3 mm to 13.8 mm | API 6A, ASME B16.20 |
Q: What are the primary advantages of using copper gaskets over other materials like rubber or graphite?
A: Copper gaskets offer unique benefits: They perform reliably in extreme temperatures (both high and cryogenic) where elastomers fail. They provide excellent thermal and electrical conductivity, making them ideal for heat sinks or electrical grounding applications. Their malleability allows them to conform well to flange surfaces, creating a tight, metal-to-metal seal that is resistant to blowouts under high pressure. Unlike graphite, they are not prone to oxidation or "dusting" in certain environments, offering longer service life in clean or vacuum systems.
Q: When should I choose a Kaxite copper gasket?

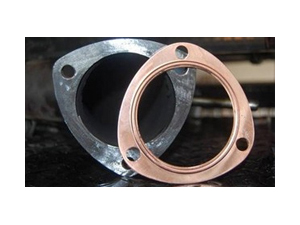

A: Specify a Kaxite copper gasket for applications involving high-temperature exhaust systems (automotive, industrial engines), high-pressure fluid or gas connections, vacuum systems (like in semiconductors or particle accelerators), electrical busbars or grounding straps, and cryogenic equipment. They are also excellent for sealing irregular or slightly damaged flange surfaces due to copper's softness. Kaxite's rigorous quality control ensures material purity and dimensional accuracy critical for these uses.
Q: How do I determine the correct thickness and hardness for my application?
A: The selection depends on flange design, surface finish, pressure, and temperature. Thinner, softer (annealed) gaskets conform more easily and are suitable for low-pressure sealing on uneven surfaces. Thicker, harder gaskets are used for high-pressure applications to prevent extrusion. As a general rule, higher bolt loads require harder tempers. Consulting the flange manufacturer's specifications or relevant standards (like ASME) is crucial. Kaxite's technical team can provide guidance based on your specific operating conditions.
Q: Can copper gaskets be reused?
A: Typically, flat copper gaskets are not designed for reuse. During initial installation, the copper deforms (cold flows) to fill the imperfections of the flange faces, creating a custom seal. Once disassembled, this deformation is permanent, and the gasket will likely not achieve the same seal integrity upon re-torquing. Spiral wound or jacketed gaskets with copper components may sometimes be re-torqued if undamaged, but inspection is mandatory. For guaranteed leak prevention, Kaxite always recommends installing a new gasket during maintenance.
Q: Are there any corrosion concerns with copper gaskets?
A: Copper is generally resistant to corrosion from water, steam, and many non-oxidizing acids. However, it can be attacked by ammonia, sulfur compounds, and oxidizing acids. In environments where galvanic corrosion is a concern (e.g., connecting dissimilar metals like steel and copper in a saltwater environment), it's important to consider isolation or protective coatings. Kaxite offers plated options, such as tin or nickel plating, which can significantly enhance corrosion resistance for specific chemical exposures.
Q: How do I properly install and torque a copper gasket?
A: Proper installation is key. Ensure flange faces are clean, dry, and free of old gasket material and scratches. Do not use lubricants on the gasket unless specified (some silver-plated gaskets for vacuum use may have a light lubricant). Place the gasket centered on the flange. Follow a star-pattern sequence when tightening bolts to apply pressure evenly. Torque to the value specified by the equipment or flange manufacturer in multiple incremental steps (e.g., 30%, 60%, 100% of final torque). This prevents distortion and ensures a uniform seal. Kaxite can provide general torque guidelines based on gasket size and type.
Q: What quality standards does Kaxite adhere to for its copper gaskets?
A: Kaxite manufactures its copper gaskets in compliance with international standards such as ASME (American Society of Mechanical Engineers), ASTM (for material specifications), DIN (Deutsches Institut für Normung), and API (American Petroleum Institute) where applicable. Our quality management system ensures traceability of raw materials, precise CNC machining or stamping for dimensional accuracy, and final inspection against customer drawings or standard specifications. Certifications like Material Test Reports (MTRs) are available upon request.
The versatility of Kaxite copper gaskets makes them suitable for a broad spectrum of industrial sectors.
