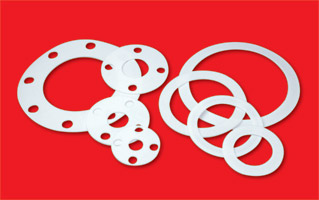

PTFE Gasket

With professional PTFE Gasket factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Gasket manufacturers and suppliers.

Send Inquiry

Description

With professional PTFE Gasket factory, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading China PTFE Gasket manufacturers and suppliers.

[ Features ]

PTFE gasket is manufactured by molding method with PTFE granular resin. PTFE compared with other plastics, has a superior properties against chemicals and temperature.
Because of such excellent properties, PTFE has a wide application as a sealing material.

[ Specifications ]

No.	Type	Standard	Type	Standard
1	RF 10A	Φ53XΦ18X3t	FF 10A	Φ90XΦ18X3t
2	RF 15A	Φ58XΦ22X3t	FF 15A	Φ95XΦ22X3t
3	RF 20A	Φ63XΦ28X3t	FF 20A	Φ100XΦ28X3t
4	RF 25A	Φ74XΦ35X3t	FF 25A	Φ125XΦ35X3t
5	RF 32A	Φ84XΦ43X3t	FF 32A	Φ135XΦ43X3t
6	RF 40A	Φ89XΦ49X3t	FF 40A	Φ140XΦ49X3t
7	RF 50A	Φ104XΦ61X3t	FF 50A	Φ155XΦ61X3t
8	RF 65A	Φ124XΦ77X3t	FF 65A	Φ175XΦ77X3t
9	RF 80A	Φ134XΦ90X3t	FF 80A	Φ185XΦ90X3t
10	RF 90A	Φ144XΦ102X3t	FF 90A	Φ195XΦ102X3t
11	RF 100A	Φ159XΦ115X3t	FF 100A	Φ210XΦ115X3t
12	RF 125A	Φ190XΦ141X3t	FF 125A	Φ250XΦ141X3t
13	RF 150A	Φ220XΦ167X3t	FF 150A	Φ280XΦ167X3t
14	RF 200A	Φ270XΦ218X3t	FF 175A	Φ305XΦ192X3t
15	RF 225A	Φ290XΦ244X3t	FF 200A	Φ330XΦ218X3t
16	RF 250A	Φ333XΦ270X3t	FF 250A	Φ400XΦ270X3t
17	RF 300A	Φ378XΦ321X3t	FF 300A	Φ445XΦ321X3t
18	RF 350A	Φ423XΦ359X3t	FF 350A	Φ490XΦ359X3t
19	RF 400A	Φ486XΦ410X3t	FF 400A	Φ560XΦ410X3t
20	RF 450A	Φ541XΦ460X3t	FF 450A	Φ620XΦ460X3t
21	RF 500A	Φ596XΦ513X3t	FF 500A	Φ675XΦ513X3t
22	RF 600A	Φ700XΦ615X3t	FF 550A	Φ745XΦ564X3t
			FF 600A	Φ795XΦ615X3t

[ Main properties ]

Properties	Unit	Result
Apparent density	g/cm³	2.10-2.30
Tensile strength (min)	MPa	15.0
Ultimate elongation (min)(min)	%	150

[ Applications ]

Sealing material.
